Material contact surfaces certification?

<div class="fusion-layout-column fusion_builder_column fusion-builder-column-38 fusion_builder_column_1_1 1_1 fusion-flex-column" style="--awb-bg-size:cover;--awb-width-large:100%;--awb-flex-grow:0;--awb-flex-shrink:0;--awb-margin-top-large:0px;--awb-spacing-right-large:1.92%;--awb-margin-bottom-large:20px;--awb-spacing-left-large:1.92%;--awb-width-medium:100%;--awb-order-medium:0;--awb-flex-grow-medium:0;--awb-flex-shrink-medium:0;--awb-spacing-right-medium:1.92%;--awb-spacing-left-medium:1.92%;--awb-width-small:100%;--awb-order-small:0;--awb-flex-grow-small:0;--awb-flex-shrink-small:0;--awb-spacing-right-small:1.92%;--awb-spacing-left-small:1.92%;"> All SS304/316L with Ra≤0.8μm electropolishing. Complies with EC 1935/2004 and FDA 21 CFR 175.300 standards.

Automation level achievable?

<div class="fusion-layout-column fusion_builder_column fusion-builder-column-39 fusion_builder_column_1_1 1_1 fusion-flex-column" style="--awb-bg-size:cover;--awb-width-large:100%;--awb-flex-grow:0;--awb-flex-shrink:0;--awb-margin-top-large:0px;--awb-spacing-right-large:1.92%;--awb-margin-bottom-large:20px;--awb-spacing-left-large:1.92%;--awb-width-medium:100%;--awb-order-medium:0;--awb-flex-grow-medium:0;--awb-flex-shrink-medium:0;--awb-spacing-right-medium:1.92%;--awb-spacing-left-medium:1.92%;--awb-width-small:100%;--awb-order-small:0;--awb-flex-grow-small:0;--awb-flex-shrink-small:0;--awb-spacing-right-small:1.92%;--awb-spacing-left-small:1.92%;"> Full unmanned operation possible. AI predicts maintenance needs + auto-orders spare parts. Remote troubleshooting 24/7.

Environmental commitments?

<div class="fusion-layout-column fusion_builder_column fusion-builder-column-40 fusion_builder_column_1_1 1_1 fusion-flex-column" style="--awb-bg-size:cover;--awb-width-large:100%;--awb-flex-grow:0;--awb-flex-shrink:0;--awb-margin-top-large:0px;--awb-spacing-right-large:1.92%;--awb-margin-bottom-large:20px;--awb-spacing-left-large:1.92%;--awb-width-medium:100%;--awb-order-medium:0;--awb-flex-grow-medium:0;--awb-flex-shrink-medium:0;--awb-spacing-right-medium:1.92%;--awb-spacing-left-medium:1.92%;--awb-width-small:100%;--awb-order-small:0;--awb-flex-grow-small:0;--awb-flex-shrink-small:0;--awb-spacing-right-small:1.92%;--awb-spacing-left-small:1.92%;"> Solar-ready designs. Carbon-neutral production since 2022. Water recycling systems. ECO mode reduces energy 35%.

MBD (Module Base Design) White Paper Plug-Play & Turnkey

Standard Interface & Module enhance Equipment Extendability & Maintanance.

By 2025, deliver GMP-compliant plug-and-play modules with ≤1% CV uniformity across 80℃–120℃ zones – eliminating product variance in herb/spice drying.

Interchangeability

Interface tolerance ≤ ±0.15mm (mechanical flange alignment).

Unified bolt specification: M10 with 120mm hole spacing.

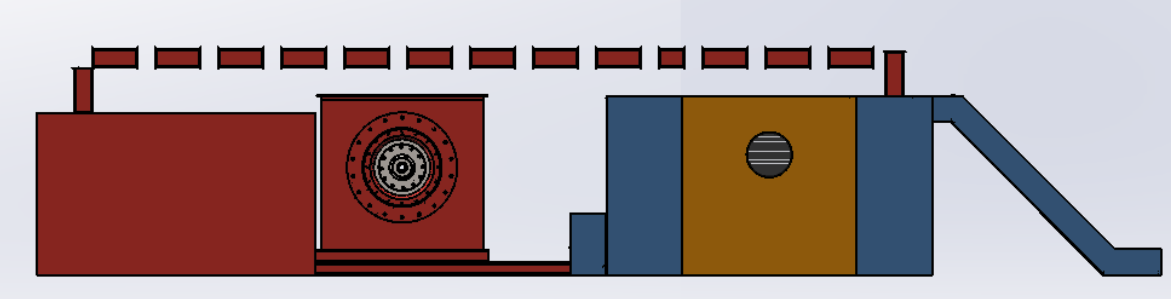

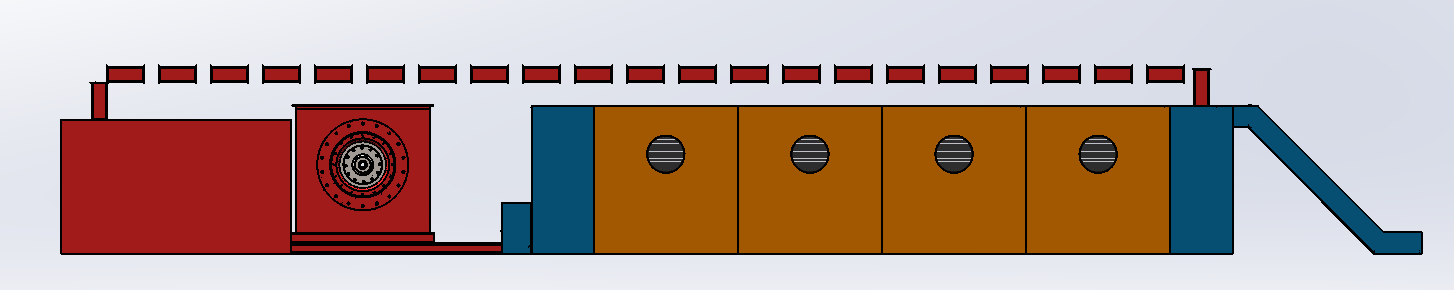

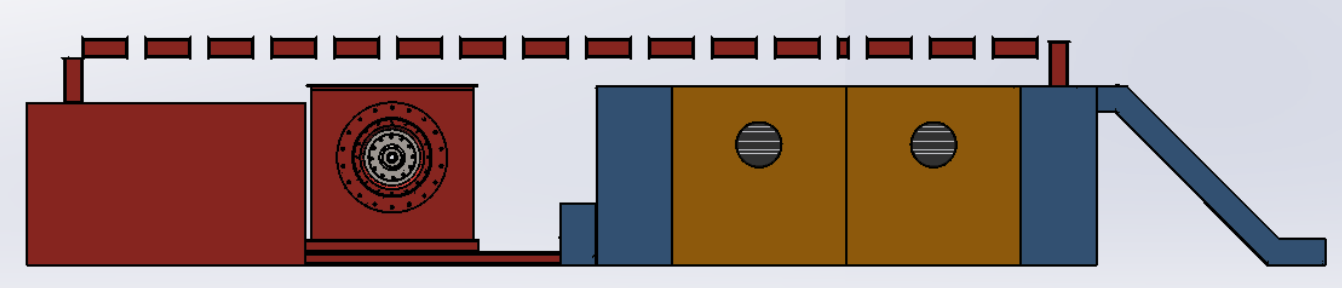

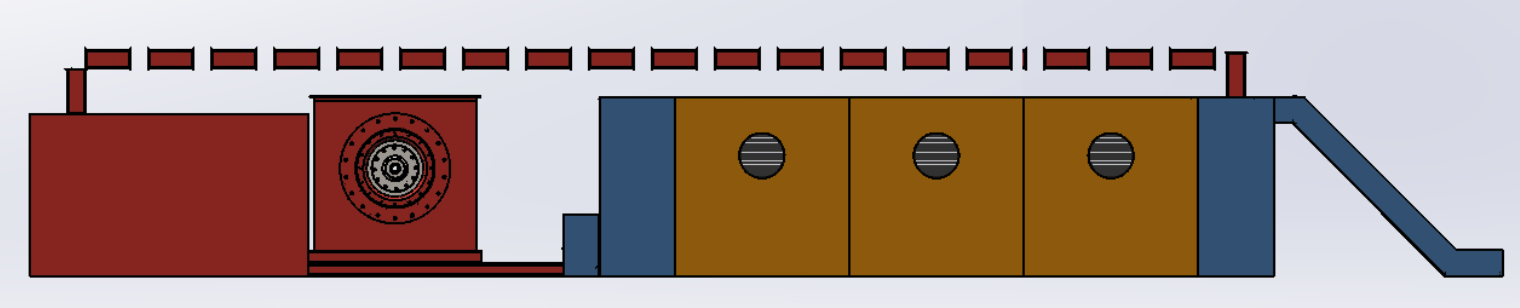

Expandability

20% payload redundancy across all modules (e.g., ModelL load capacity: 570kg + 114kg buffer).

Maintainability

Single-module replacement time ≤ 30 minutes (tool-free disassembly design).

Get your free support – Message us!

get startedcontact us

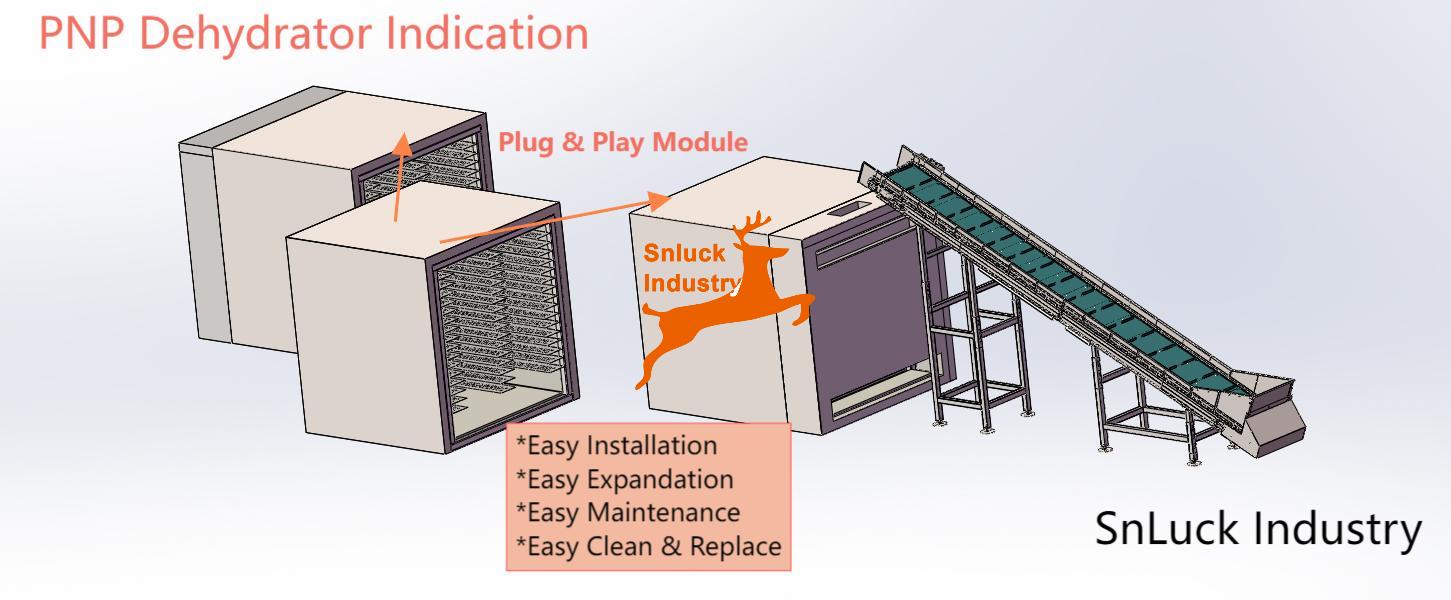

Plug & Play

Turns raw waste into profitable pellets—ROI in 6 months.

Load Module

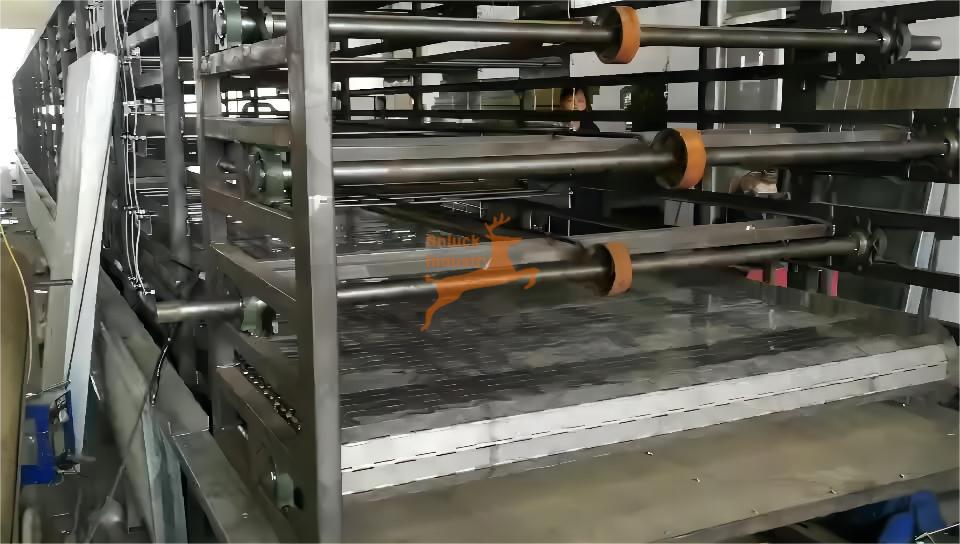

Structural backbone for conveyor systems. Combines belt assembly (ModelLB) and trolley units (ModelLT) with 2200×2200×2200mm SUS304 frames. PTFE-coated stainless mesh belts withstand 50 thermal cycles (-20↔250℃). Features tool-free disassembly (≤30min swap) and 20% payload redundancy, cutting downtime 80% in high-moisture environments.

Heat Module

Integrated thermal system for precise drying control. Supports electric (ModelHE), boiler (ModelHB), and heat pump (ModelHP) variants with COP ≥3.0. Features 500×200mm flange interfaces (±0.15mm tolerance) and RS485 Modbus control. Ensures uniform heat distribution across 1800×2000×1500mm workspace, validated by ISO 10816-3 vibration tests.

Drive Module

Central power hub for material/airflow handling. Integrates feeding (ModelDF), drive (ModelDS), circulation (ModelDR), and control (ModelDC) submodules. 800×2200×2200mm SUS304/Q235B structure with M10 bolt interfaces. Delivers ≤500ms response via IoT control (±0.5℃ precision), slashing energy waste by 30% in continuous operation.

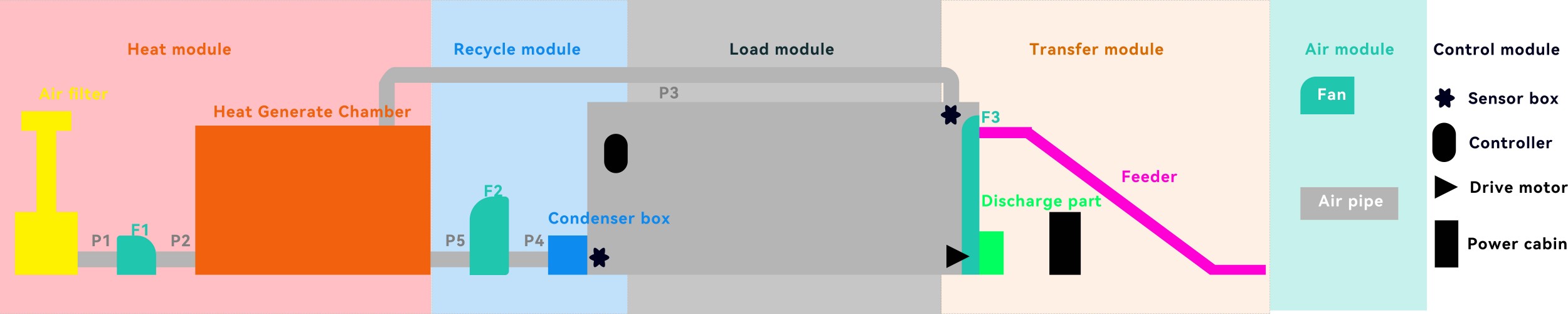

Thermal Loop: ModelHE → ModelHT (Duct) → ModelHF (Fan) → ModuleL.
Control Hierarchy: ModelDC prioritizes commands during conflicts (100% response accuracy).

MBD (Module Base Design) White Paper Plug-Play & Turnkey

By 2025, deliver GMP-compliant plug-and-play modules with ≤1% CV uniformity across 80℃–120℃ zones – eliminating product variance in herb/spice drying.

Interchangeability

Expandability

Maintainability

Get your free support – Message us!

Plug & Play

Load Module

Heat Module

Drive Module

Spicy Dehydrating & Powder Making Line – Less Breakage – Less Consumption – Quick ROI

Multiple Vegetable Dehydrating Process Line – No Breakage – Color Resistance – Less Consumption

Multiple Fruits Dehydrating Process Line – No Brown – No Breakage – Color Resistance

Holding Active Compounds Dry: EU-Certified Herb Drying

GMP Herb Processing: 98% Active Compound Retention, 50% Energy Reduction, Full Traceability

End Rainy Season Losses: Industrial Dryers That Thrive in 100% Humidity

20Mt/Day Cassava Starch Process Line-40% Yield Rate-Recycle Water Usage

20Mt/Day Cassava Livestock Pellet Process Line – Feed Pellet Making – 6 Month ROI

100Kg/Hr Cassava Chips Continuous Dehydrating Process Line – 30% Energy Reduce – 1 Labor Operation
